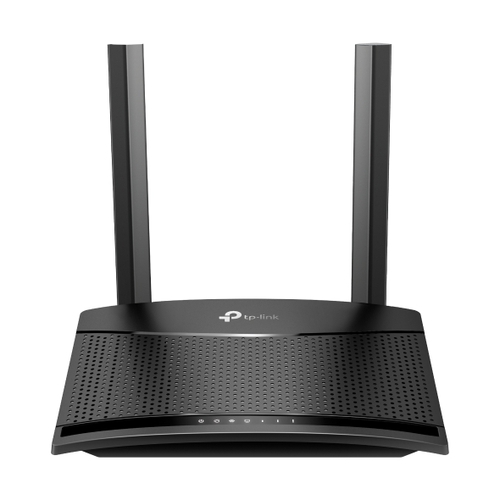

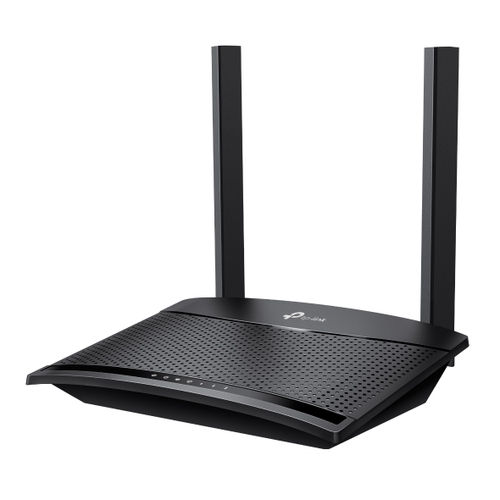

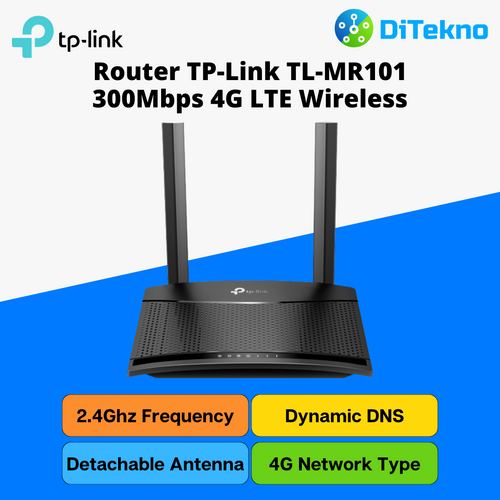

TL-MR101 Khusus Sim Card IM3 dan Three (3)

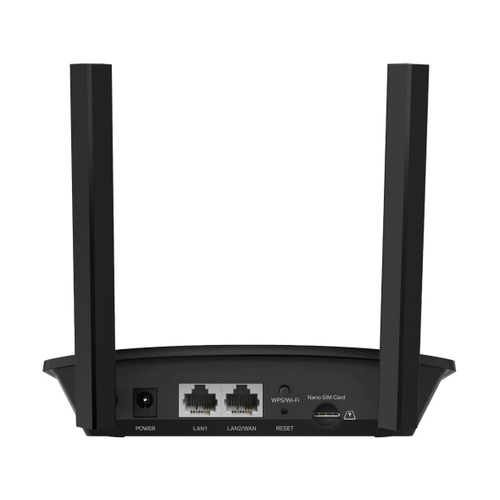

| Interface | 1 10/100Mbps LAN Port 1 10/100Mbps LAN/WAN Port 1 Nano SIM Card Slot 2 External SMA-F Antenna Interface |
|---|---|
| Button | WPS/WiFi Reset Button |
| External Power Supply(EU) | 9V/0.85A |
| Dimensions ( W x D x H ) | 6.06×4.49×1.42 in ( 154×114×36 mm) |
| Antenna | 2 Undetachable External 4G LTE Antennas |
| Wireless Standards | IEEE 802.11b/g/n |
|---|---|
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power | < 20 dBm (2.4 GHz) |
| Network Type | 4G : FDD-LTE : B1/B3/B5/B8 (2100/1800/850/900 MHz) TDD-LTE : B38/B40/B41 (2600/2300/2500 MHz) 3G : HSPA+/UMTS:B1/B5/B8 (2100/850/900 MHz) |
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
|---|---|
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features | Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| Certification | CE, RoHS |
|---|---|
| Package Content | 300 Mbps Wireless N 4G LTE TL-MR101 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista /7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
| Environment | Operating Temperature: 0°C~40°C (32[?]F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |

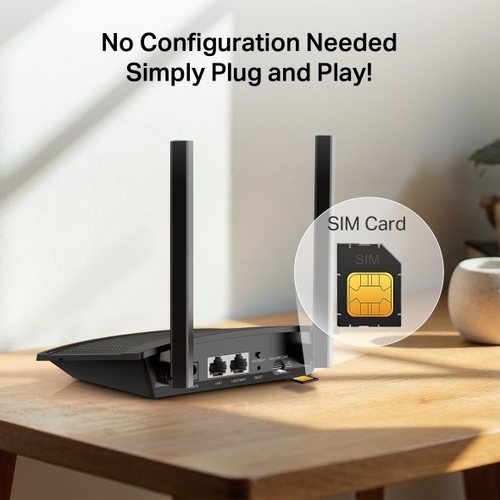

*Perangkat ini memerlukan kartu SIM yang sudah diaktifkan tanpa kunci PIN. Jika SIM terkunci, silakan merujuk pada panduan instalasi cepat untuk instruksi membuka kunci.
**Kecepatan sinyal nirkabel maksimum adalah kecepatan fisik yang dihitung berdasarkan spesifikasi Standar IEEE 802.11. Throughput data nirkabel sebenarnya, jangkauan nirkabel, dan jumlah perangkat yang terhubung tidak dijamin dan dapat bervariasi akibat kondisi jaringan, keterbatasan perangkat klien, dan faktor lingkungan, termasuk bahan bangunan, hambatan, volume dan kepadatan lalu lintas, serta lokasi perangkat klien.
[?]Kecepatan jaringan aktual dapat dibatasi oleh kecepatan port Ethernet WAN atau LAN produk, kecepatan yang didukung oleh kabel jaringan, faktor penyedia layanan internet, dan kondisi lingkungan lainnya.
